Can a bathtub be converted into a cold water tank?

With the popularity of cold-water therapy, the demand for converting home bathtubs into simple cold plunge pod has gradually emerged. This renovation plan has certain advantages in cost and space utilization, but it needs to take into account thermal insulation performance, temperature control accuracy and safety regulations. Not all bathtubs are suitable for renovation.

Basic conditions for renovation: bathtub type and structural adaptability

Cast iron or acrylic bathtubs are more suitable for renovation. Cast iron bathtubs have thick walls （usually 4-6mm） and low thermal conductivity and naturally have a certain thermal insulation capacity; acrylic bathtubs can enhance the thermal insulation effect by adding an insulation layer, while steel bathtubs have fast thermal conductivity and poor thermal insulation, and energy consumption will increase significantly after renovation. The volume of the bathtub must be between 150-200L. If it is too small, the water volume is insufficient and the body cannot be completely immersed; if it is too large, the load of the refrigeration equipment will increase, resulting in difficulty in temperature control. In addition, the bathtub must have a complete drainage system, and the bottom load-bearing capacity must reach more than 300kg （including the weight of the water body and the user）. Old bathtubs must first be inspected for cracks or deformation in the tank.

Core transformation steps: Construction of refrigeration and insulation system

The selection of refrigeration equipment is the key. A small compressor （power 500-800W） with a titanium tube heat exchanger is a common solution. Titanium tubes are corrosion-resistant and have high heat exchange efficiency. They can be directly placed in the bathtub water and the water temperature can be stabilized at 10-15℃（the ideal temperature for cold water therapy） through a thermostat. It should be noted that the compressor must be installed in a well-ventilated location to avoid condensation accumulation and circuit failure.

The insulation transformation needs to be divided into two steps: the outside of the cylinder is wrapped with a 3-5cm thick polyurethane insulation board, and the joints are sealed with aluminum foil tape; the water surface is covered with an insulation floating board （such as XPS extruded board） to reduce the heat exchange between the water and the air. Data shows that after good insulation, the water temperature can be controlled within 1℃ per hour, which is much lower than the 3-5℃ of the unmodified bathtub.

Safety and usage specifications: avoid transformation hazards

Circuit safety is the primary consideration. The refrigeration equipment needs to be connected to a 16A socket separately and a leakage protector （operating current ≤ 30mA） must be installed. No exposed sockets are allowed within 1.5 meters around the bathtub. Water disinfection cannot be ignored. 1-2ppm of chlorine tablets （equivalent to the concentration of swimming pool disinfection） can be added every week to prevent bacterial growth. At the same time, avoid using acidic detergents to prevent corrosion of the heat exchanger.

When using, the "gradual" principle must be followed: the water temperature should be controlled at 15℃ for the first time, and each soaking should not exceed 5 minutes; after adaptation, it can be gradually reduced to 10℃, and the duration can be extended to 10 minutes. The modified bathtub cannot be used as an ordinary bathtub （to avoid hot water damaging the refrigeration equipment）, and the heat exchanger must be checked weekly for scaling and cleaned regularly with citric acid solution.

Limitations and alternatives of modification

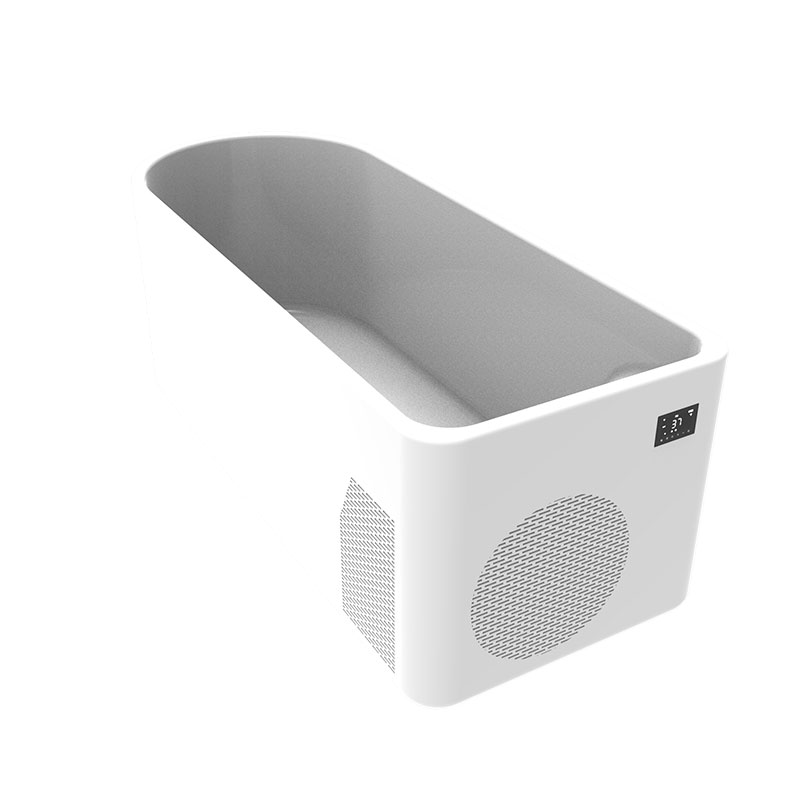

The temperature control accuracy of the modified bathtub is limited. When the ambient temperature changes drastically （such as the room temperature exceeding 30℃ in summer）, the water temperature may fluctuate by ±2℃, which cannot reach the accuracy of ±0.5℃ of professional cold plunge pod. For users who pursue strict temperature control, modular cold plunge pod (with built-in insulation and refrigeration systems) is more expensive （about 10,000 to 20,000 yuan）, but have more advantages in stability and safety.

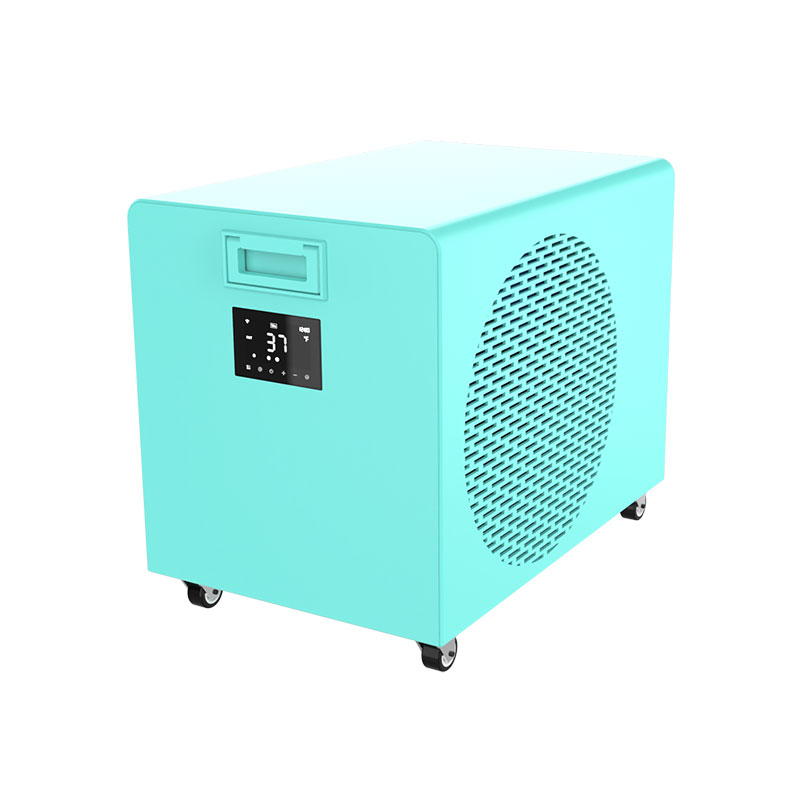

In addition, the modified bathtub will lose its original bathing function, and the refrigeration equipment will generate 40-50 decibels of noise when running, which may affect the living experience. Therefore, users who rent or use it for a short period of time are more suitable to choose a movable cold plunge pod (capacity of about 100L, price of about 3,000-5,000 yuan), which can be used without modification.

It is technically feasible to transform a bathtub into a cold plunge pod, but it is necessary to balance the three aspects of insulation, refrigeration, and safety. It is suitable for families with certain DIY capabilities and long-term use. For users who focus on convenience and professionalism, choosing a finished cold plunge pod is still a better solution. The two jointly promote the popularization of cold-water therapy to home scenes.
